Troubleshooting a Gladiator JT or Wrangler JL / JLU with a Heigh10+, Horizon10, or Horizon12 radio kit

If the kit is not working properly or the factory camera quits working, try these steps to fix the issue.

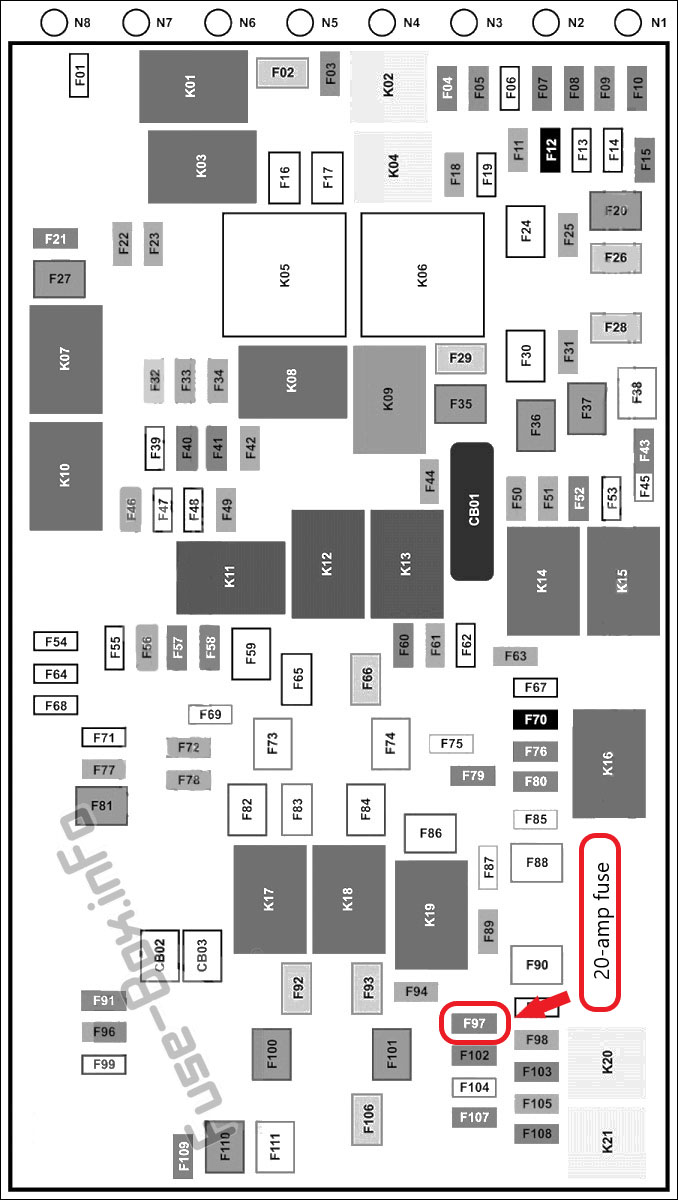

1. Open the hood and locate the fuse box next to the battery. Remove the radio fuse for 5 seconds. The radio fuse is F97, a 20-amp yellow fuse. (Figure A)
2. After reinserting the fuse, close the fuse box and hood, then start the Jeep.
3. After the radio loads up, navigate to the Settings page and search for Load Defaults. Select that to reset the radio.
4. After the radio loads up, navigate to:  Settings / Installer (top right tab) / PAC advanced settings / Application Info
5. Select a factory reset for the RPA-HD1.
6. Select a factory reset for the PAC-LINK PL-1.
7. Select a factory reset for the RadioPro.

Check the kit for proper functionality. If the kit is still not functioning correctly, please contact technical support for further troubleshooting. It would be best if the dashboard is apart to inspect the kit components behind the dashboard.

(Figure A)
