RB10GM14(V2), RB10GM14HP, RB10GM14X, : No audio in Bose-equipped vehicles

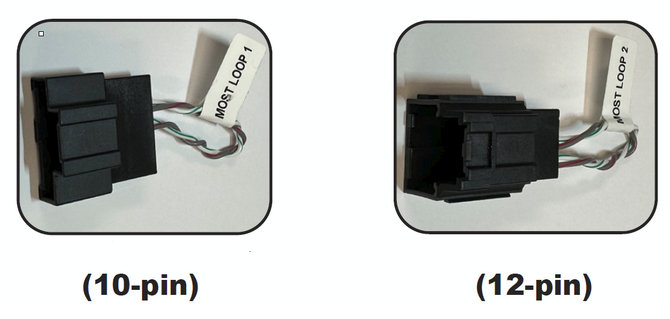

In Bose-equipped vehicles, all audio components are connected in a loop. If an audio component is missing, you will not have sound. For this reason, the RB10GM14(V2), RB10GM14HP, RB10GM14X provides jumpers to remove unnecessary audio components. The unnecessary components are the external CD drive and DVD drive. Two jumpers are provided depending on which external drive you have. You will only use one of the two jumpers. Discard the one that doesn’t plug in.
