Heigh10 Legacy Firmware Links

The following legacy firmware is only for the Heigh10 and should only be used if instructed to do so by Stinger Technical Support. These firmware files will only work with the Heigh10 “non-X” version radios.

This can be verified two different ways:

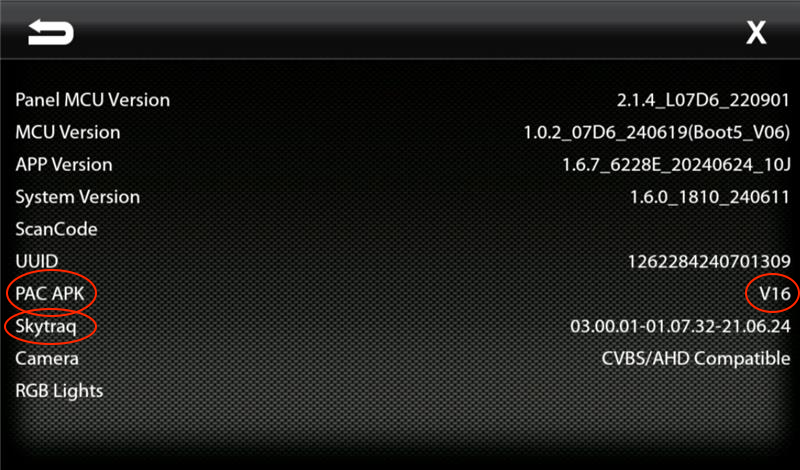

1. If Skytraq (circled in red) is shown the System Information screen, you have an “X” version. The legacy firmware will not work with this radio.

   settings / system settings / installer settings (0052) / system information

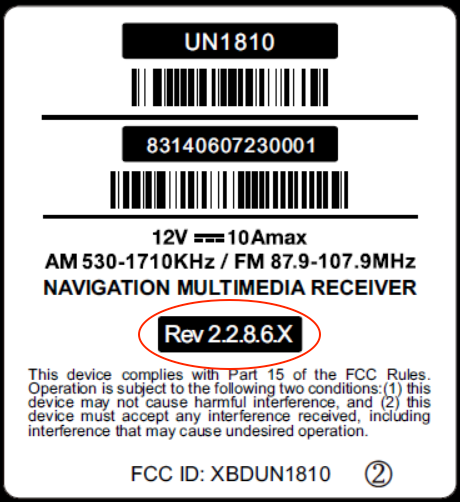

2. You can also verify the version by the revision number on the radio chassis. If it ends in X (circled in red), you have an “X” version. The legacy firmware will not work with this radio.



Legacy firmware files:

1-11-23 V11 Firmware (1), (3)

1-11-23 V10 Firmware (2), (3)

7-21-22 Firmware (2)

9-18-21 Firmware (2)

Notes:

1. This firmware is only for a Jeep Wrangler JK with a fully integrated kit.
2. This firmware cannot be used with a Jeep Wrangler JK with a fully integrated kit
3. If used with a PAC integrated kit, the RadioPro firmware must be V14 or higher (*).

(*) Navigate to; settings / system settings / installer settings (0052) / advanced vehicle settings / about / RadioPro.

Update Instructions:

Click here for instructions on how to update the Heigh10.

Click here for a walkthrough video on how to update the Heigh10.
